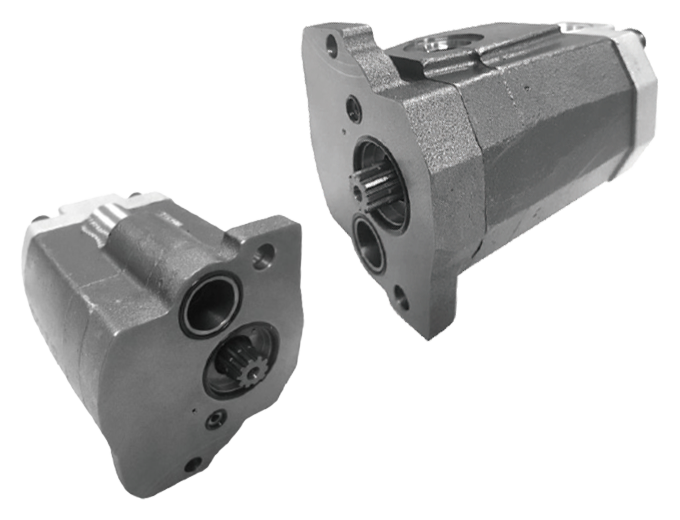

Gear Pump

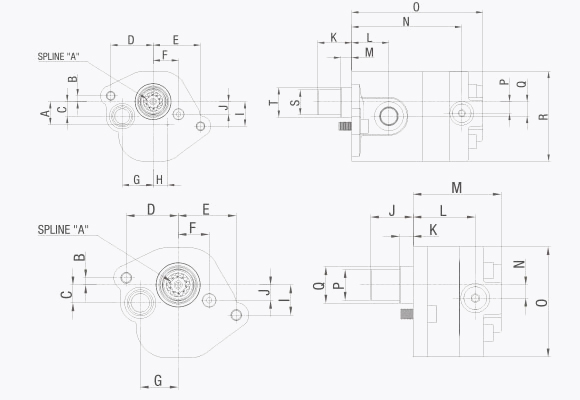

Model	A	B	C	D	E	F
KGPS (6.5cc)	26	7.8	16.25	50	56	30
	G	H	I	J	K	L
	36.5	17	28	40.95	13	60
	M	N	O	P	Q
	85	13	106	35	30

Model	A	B	C	D	E
KGPD (12.1+6.5, 16.2+4.5, 18.3+4.5)	26	7.8	16.25	50	56
	F	G	H	I	J
	30	36.5	17	28	18.66
	K	L	M	N	O
	40.25	44	13	130	155
	P	Q	R	S	T
	13	16	160	35	30

"A" SPLINE

Model	16/32
Pressure	30º
NO. Of Teeth	13
Standard Pitch Circle Diameter	Ø30.638
