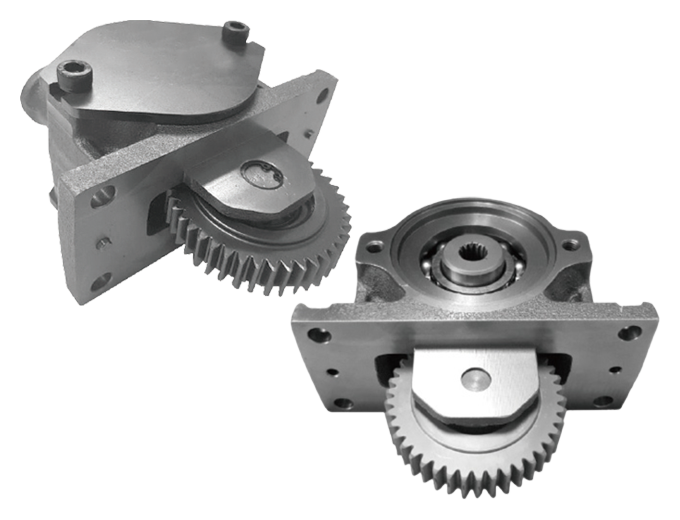

PTO
K3V/K5V DTP Series

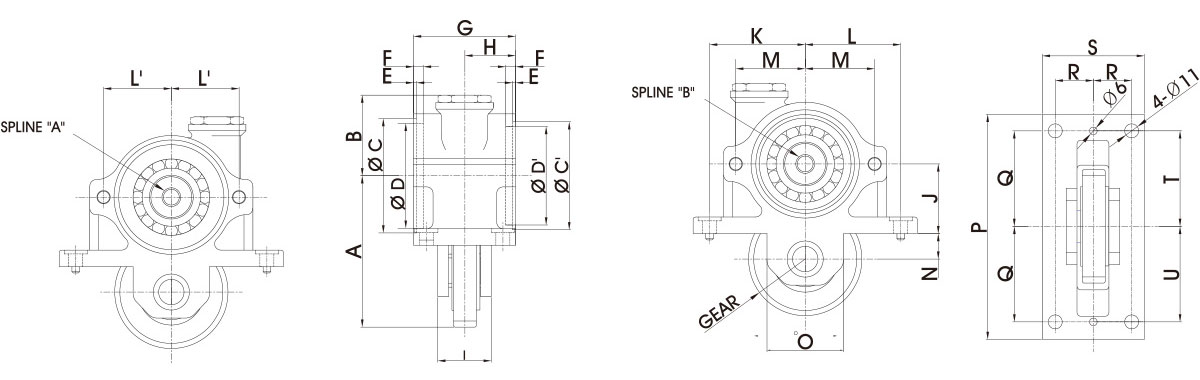

| Model | A | B | C | D | C' | D' | E | F |
|---|---|---|---|---|---|---|---|---|
| PTO(A) | 120 | 64 | 90 | 82.55 | 85 | 77.5 | 2.4 | 7.8 |
| PTO(B) | 90 | 82.5 | ||||||
| Model | G | H | I | J | K | L | M | N |
| PTO(A) PTO(B) | 80 | 40 | 42 | 55 | 75 | 75 | 54.5 | 20 |
| Model | O | P | Q | R | S | T | U | |
| PTO(A) PTO(B) | 60 | 176 | 75 | 30 | 80 | 75 | 75 |
| SPLINE "B" | SPLINE "A" | GRAR | |
|---|---|---|---|
| Module | 1 | 16/32 | 2 |
| No. of teeth | 13 | 10 | 42 |
| Pressure | 20º | 30º | 20º |
| Standard Pitch Circle Diameter | Ø13 | Ø15.875 | Ø84 |
