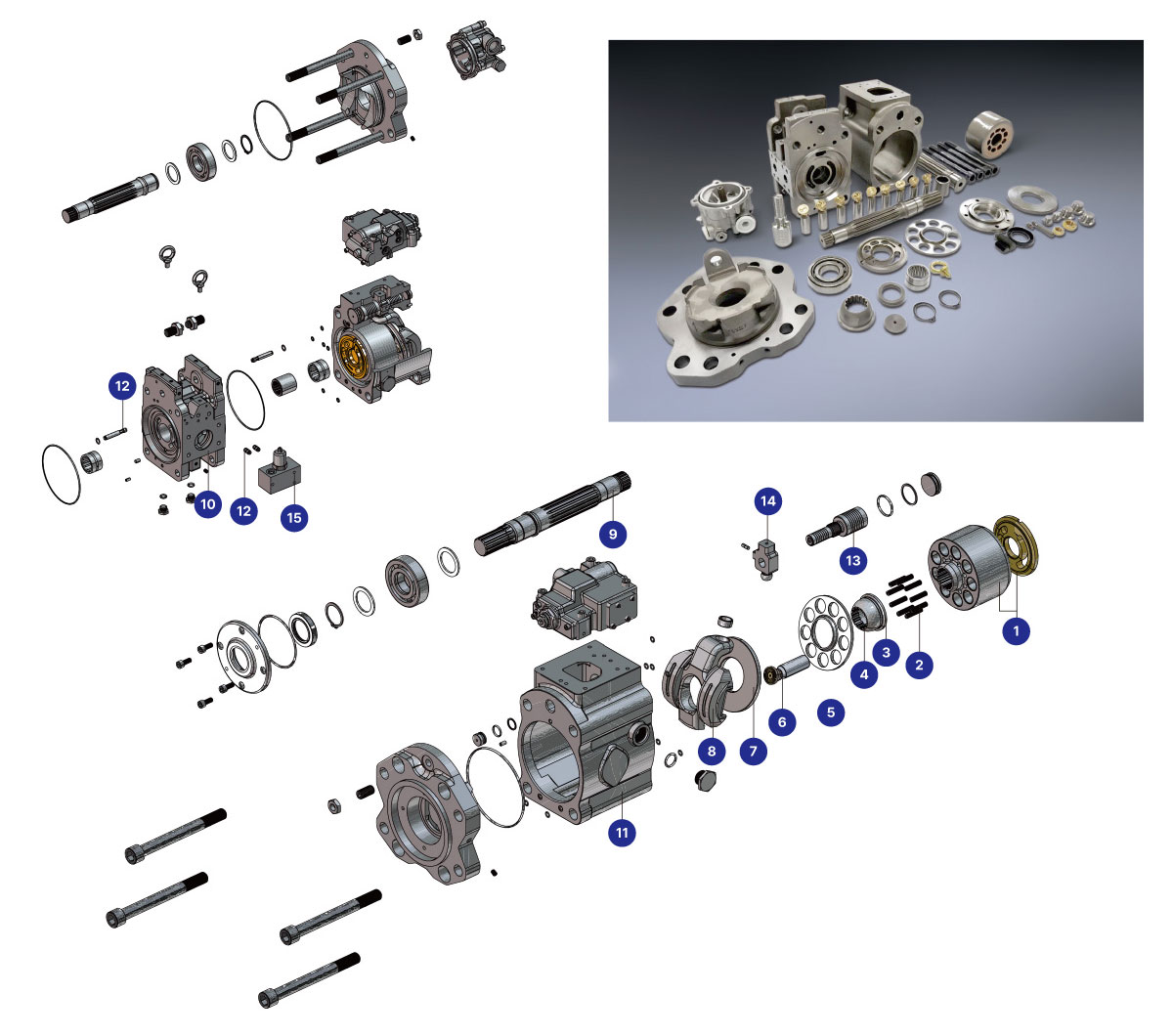

K3V63/112/140/180DT

NO.	Part Name	Q'ty	Unit
1-a	Cylinder Block Ass'y(with Valve Plate- RH)	1	set
1-b	Cylinder Block Ass'y(with Valve Plate- LH)	1	set
2	Coil Spring (9pcs/set)	2	set
3	Spacer	2	pcs
4-a	Spherical Bush(Ball Guide)Casting type	2	pcs
4-b	Spherical Bush(Ball Guide) Bronze type	2	pcs
5	Push Plate (Set Plate)	2	pcs
6	Piston Ass'y(9pcs/set)	2	pcs
7	Shoe Plate	2	pcs
8	Swash Plate & Support	2	pcs
9	Drive Shaft (RH/LH)	2	pcs
10	Valve Block	2	pcs
11	Case(Housing)	2	pcs
12-a	Check Valve - long	2	pcs
12-b	Check Valve - short	2	pcs
13	Servo Piston	2	pcs
14	Tilting Pin	2	pcs
15	Eppr v/v assy	1	pcs
