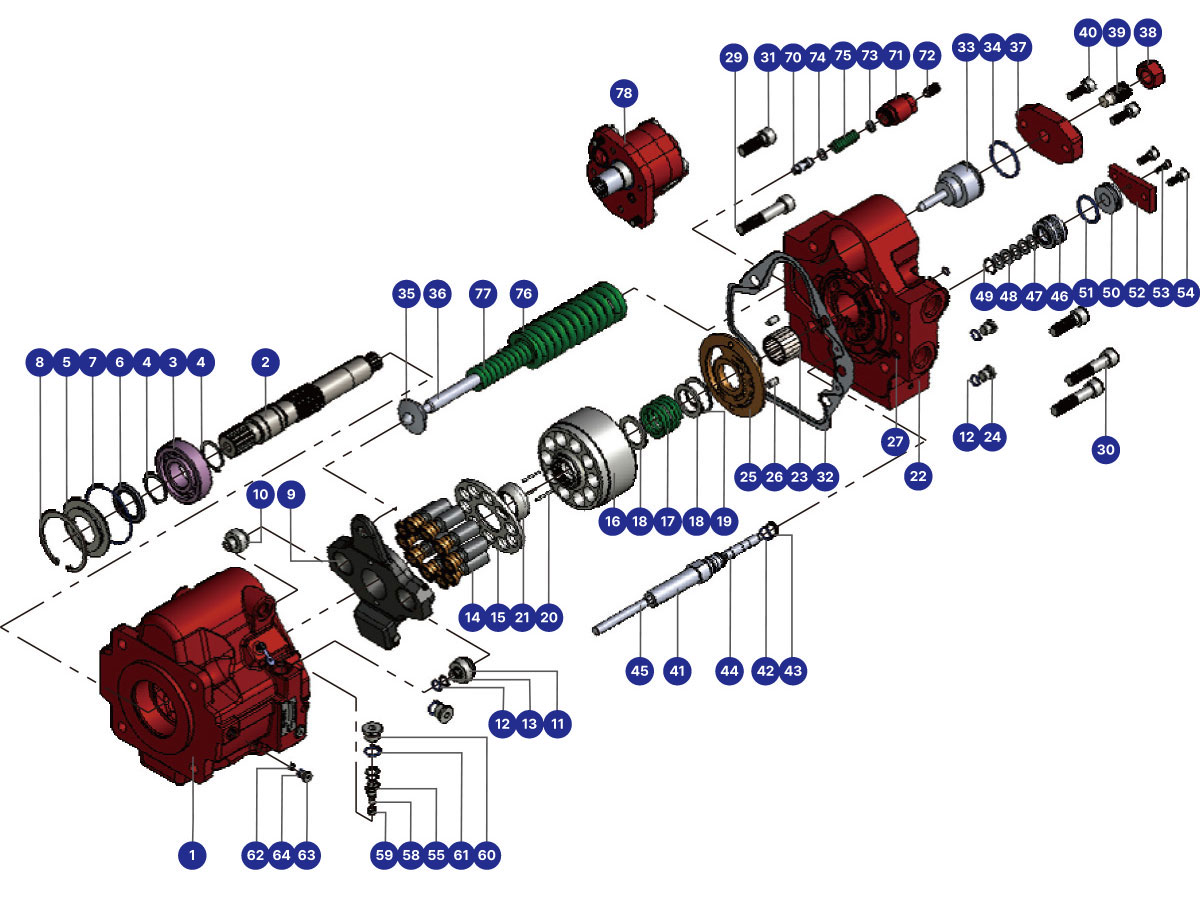

8 TON MAIN PUMP
| NO. | Name | DOBEN | EA | Remarks |
|---|---|---|---|---|
| 1 | HOUSING | KMP5-201004 | 1 | |
| 2 | SHAFT | KMP5-319005 | 1 | |
| 3 | BALL BEARING | K909-6307 | 1 | 6307 |
| 4 | SNAP RING | K904-EXT035 | 2 | C TYPE SHAFT 35 |
| 5 | SEAL CASE | KMP5-320006 | 1 | |
| 6 | OIL SEAL | K910-TCV35X52X6 | 1 | |
| 7 | O-RING | K903-001A151 | 1 | |
| 8 | SNAP RING | K904-INT080 | 1 | AS568-147 |
| 9 | SWASH PLATE ASS'Y | KMP5-000007 | 1 | AS568-144 |
| 10 | BALL GUIDE(A) | KMP5-332012 | 1 | AS568-168 |
| 11 | BALL GUIDE(B) | KMP5-332013 | 1 | P015 |
| 12 | O-RING | K903-002P011 | 5 | P008 |
| 13 | BACK UP RING | K916-P011 | 1 | P011 |
| 14 | PISTON ASS'Y | KMP5-000014 | 10 | AS568-016 |
| 15 | RETAINER | KMP5-312017 | 1 | AS568-011 |
| 16 | CYLINDER BLOCK | KMP5-203019 | 1 | AS568-009 |
| 17 | SPRING, CYL'D BLOCK | KMP5-314020 | 1 | P034 |
| 18 | WASHER | KMP5-328021 | 2 | C TYPE HOLE 72 |
| 19 | SNAP RING | K904-INT045 | 1 | C TYPE HOLE 40 |
| 20 | DAWEL PIN | K915-D03030 | 3 | C TYPE HOLE 25 |
| 21 | PIVOT | KMP5-325022 | 1 | |
| 22 | VALVE BLOCK | KMP5-205024 | 1 | 30X62X21.25 |
| 23 | NEEDLE ROLLER BEARING | K909-304030 | 1 | |
| 24 | RO PLUG | K914-PF 1/4 | 4 | |
| 25 | VALVE PLATE | KMP5-324025 | 1 | |
| 26 | PARALLEL PIN | K905-D080106 | 2 | M6 x 16 |
| 27 | O-RING | K903-002P009 | 4 | M8 × 25 |
| 28 | PIPE PLUG | K911-PY1/16 | 7 | M8 × 30 |
| 29 | SOC.HD CAP SCREW | K907-SM14075 | 1 | M12 × 30 |
| 30 | SOC.HD CAP SCREW | K907-SM14065 | 2 | M12 × 55 |
| 31 | SOC.HD CAP SCREW | K907-SM14040 | 2 | |
| 32 | GASKET | KMP5-409026 | 1 | |
| 33 | SPRING SEAT | KMP5-306027 | 1 | |
| 34 | O-RING | K903-002P044 | 1 | |
| 35 | SPRING SHEET(A) | KMP5-306029 | 1 | |
| 36 | SPRING GUIDE | KMP5-307030 | 1 | |
| 37 | SPRING COVER | KMP5-204034 | 1 |
| NO. | Name | DOBEN | EA | Remarks |
|---|---|---|---|---|
| 38 | HEX.NUT | K902-HM20 | 1 | 03X30 |
| 40 | SOC.HD CAP SCREW | K907-SM10030 | 2 | |
| 41 | SLEEVE | KMP5-304036 | 1 | |
| 42 | O-RING | K903-002P015 | 1 | |
| 43 | BACK UP RING | K916-P015 | 1 | |
| 44 | SPOOL | KMP5-302037 | 06X20 | |
| 45 | CONTROL PIN | KMP5-326038 | 1 | NPT 1/16 |
| 46 | CONTROL PISTON | KMP5-309039 | 1 | |
| 47 | WASHER | KMP5-328040 | PF 1/8PF 1/8 | |
| 48 | CONICAL WASHER | KMP5-328041 | PF 1/4 | |
| 49 | SNAP RING | K904-INT020 | 1 | |
| 50 | STOPPER | KMP5-310042 | 1 | |
| 51 | O-RING | K903-002P032 | 1 | |
| 52 | COVER | KMP5-321043 | 1 | |
| 53 | SOC.HD CAP SCREW | K907-SM05016 | ||
| 54 | SOC.HD CAP SCREW | K907-SM08020 | ||
| 55 | PLUG, SUTTLE V/V | KMP5-308051 | 1 | |
| 56 | SEAL WASHER,SUTTLE V/V | KMP5-328052 | 1 | |
| 57 | WASHER, SUTTLE V/N | KMP5-328053 | 1 | |
| 58 | STEEL BALL | K917-D006 | 1 | |
| 59 | SEAT ,SUTTLE V/V | KMP5-305054 | T=0.5 | |
| 60 | RO PLUG | K914-M8X1.5 | T=1.0 | |
| 61 | O-RING | K903-002P016 | 1 | |
| 62 | ORIFICE | KMP1-315025 | 1 | M16XP1.5 |
| 63 | RO PLUG | K914-PF1/8 | 2 | M16 |
| 64 | O-RING | K903-002P008 | 3 | |
| 65 | RO PLUG | K914-PF3/8 | 1 | |
| 66 | O-RING | KMP1-314047 | 1 | |
| 70 | SPOOL, RELIEF V/N | KMP1-318048 | 1 | |
| 71 | BODY, RELIEF V/N | KMP1-501049 | 1 | |
| 72 | ADJUST SCREW,RELIEFV/V | KMP5-316045 | 1 | |
| 73 | SPING FOLLOW,RELIEF V/V | KMP5-336047 | 1 | |
| 74 | WASHER, RELIEF V/V | KMP5-314049 | 1 | |
| 75 | SPRING, RELIEF V/V | KMP5-314048 | 1 | |
| 76 | SPRING(OUT) | KMP5-314032 | 1 | |
| 77 | SPRING(IN) | KMP5-314031 | 1 | |
| 78 | GEAR PUMP ASS'Y | KGP6-000001 | 1 |
