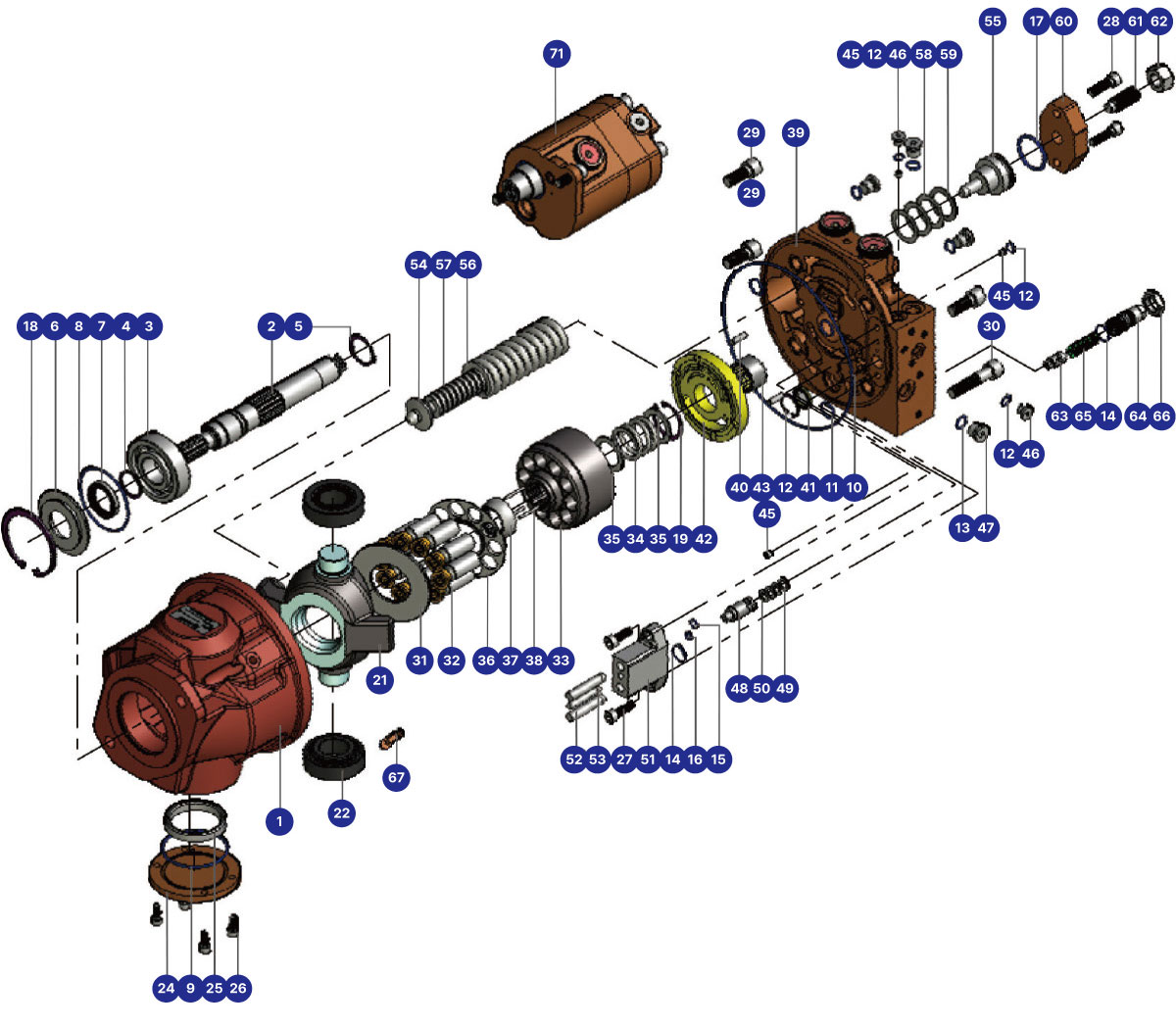

5_7 TON MAIN PUMP
| NO. | Name | DOBEN | EA | Remarks |
|---|---|---|---|---|
| 1 | SOC.HD CAP SCREW | KMP1-201004 | 1 | |
| 2 | SHAFT | KMP1-319005 | 1 | |
| 3 | BALL BEARING | K909-6306 | 1 | 30X72X19 |
| 4 | SNAP RING | K904-EXT028 | 1 | C TYPE SHAFT 28 |
| 5 | SNAP RING | K904-EXT030 | 1 | C TYPE SHAFT 30 |
| 6 | SEAL CASE | KMP1-320006 | 1 | |
| 7 | OIL SEAL | K910-TCV284006 | 1 | |
| 8 | O-RING | K903-001A147 | 1 | AS568-147 |
| 9 | O-RING | K903-001A144 | 1 | AS568-144 |
| 10 | O-RING | K903-001A168 | 1 | AS568-168 |
| 11 | O-RING | K903-002P015 | 4 | P015 |
| 12 | O-RING | K903-002P008 | 3 | P008 |
| 13 | O-RING | K903-002P011 | 4 | P011 |
| 14 | O-RING | K903-001A016 | 2 | AS568-016 |
| 15 | O-RING | K903-001A011 | 1 | AS568-011 |
| 16 | O-RING | K903-001A009 | 1 | AS568-009 |
| 17 | O-RING | K903-001P034 | 1 | P034 |
| 18 | SNAP RING | K904-INT072 | 1 | C TYPE HOLE 72 |
| 19 | SNAP RING | K904-INT040 | 1 | C TYPE HOLE 40 |
| 20 | SNAP RING | K904-INT025 | 1 | C TYPE HOLE 25 |
| 21 | KMP1-211008 | KMP1-211008 | 1 | |
| 22 | TAPER ROLLER BEARING | K909-HR32206J | 2 | 30X62X21.25 |
| 23 | SEAT | KMP1-305009 | 1 | |
| 24 | SIDE COVER | KMP1-321010 | 1 | |
| 25 | SPACER | KMP1-322011 | 1 | |
| 26 | SOC.HD CAP SCREW | K907-SM06016 | 4 | M6 × 16 |
| 27 | SOC.HD CAP SCREW | K907-SM08025 | 2 | M8 × 25 |
| 28 | SOC.HD CAP SCREW | K907-SM08030 | 2 | M8 × 30 |
| 29 | SOC.HD CAP SCREW | K907-SM12030 | 3 | M12 × 30 |
| 30 | SOC.HD CAP SCREW | K907-SM12055 | 1 | M12 × 55 |
| 31 | SWASH PLATE | K907-SM12055 | 1 | |
| 32 | PISTON ASS'Y | KMP1-000012 | 1 | |
| 33 | CYLINDER BLOCK | KMP1-203016 | 1 | |
| 34 | SPRING(C) | KMP1-314017 | 1 |
| NO. | Name | DOBEN | EA | Remarks |
|---|---|---|---|---|
| 35 | SPRING SHEET(A) | KMP1-306018 | 2 | |
| 36 | RETAINER | KMP1-312019 | 1 | |
| 37 | PIVOT | KMP1-325021 | 1 | |
| 38 | DAWEL PIN | K915-D03030 | 3 | 03X30 |
| 39 | VALVE BLOCK | KMP1-205023 | 1 | |
| 40 | NIDDLE BEARING | K909-HMK2620 | 1 | |
| 41 | STRAINER | KMP1-401027 | 1 | |
| 42 | VAVLE PLATE | KMP1-324024 | 1 | |
| 43 | PARALLEL PIN | K905-D06020 | 2 | 06X20 |
| 44 | PIPE PLUG | K911-NPT1/16 | 10 | NPT 1/16 |
| 45 | ORIFICE | KMP1-315025 | 3 | |
| 46 | RO PLUG | K914-PF1/8 | 2 | PF 1/8PF 1/8 |
| 47 | RO PLUG | K914-PF1/4 | 4 | PF 1/4 |
| 48 | CONTROL PISTON | KMP1-309040 | 1 | |
| 49 | SPRING SHEET | KMP1-306043 | 1 | |
| 50 | CONICAL WASHER | KMP1-328044 | 3 | |
| 51 | CONTROL CYLINDER | KMP1-215039 | 1 | |
| 52 | CONTROL PIN (A) | KMP1-326041 | 2 | |
| 53 | CONTROL PIN (B) | KMP1-326042 | 1 | |
| 54 | SPRING SEAT(A) | KMP1-306029 | 1 | |
| 55 | SPRING SEAT(B) | KMP2-306030 | 1 | |
| 56 | SPRING(OUT) | KMP1-314034 | 1 | |
| 57 | SPRING(IN) | KMP1-314035 | 1 | |
| 58 | SHIM(A) | KMP1-327036 | 3 | T=0.5 |
| 59 | SHIM(B) | KMP1-327037 | 1 | T=1.0 |
| 60 | SPRING COVER | KMP1-204032 | 1 | |
| 61 | ADJUSTMENT SCREW | KMP1-316033 | 1 | M16XP1.5 |
| 62 | HEX. NUT | K902-HM16. | 1 | M16 |
| 63 | SPOOL | KMP1-302045 | 1 | |
| 64 | ADJUST SCREW | KMP1-316046 | 1 | |
| 65 | SPRING, RELIEF | KMP1-314047 | 1 | |
| 66 | NUT, RELIEF | KMP1-318048 | 1 | M18XP1.0 |
| 67 | AIR VENT | KMP1-501049 | 1 | |
| 71 | GEAR PUMP ASS'Y | KGP1-000002 | 1 | 16.2cCX4.5cc |
